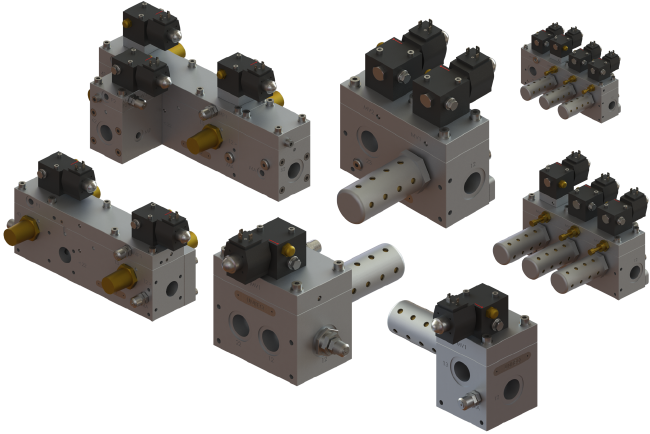

Pneumatic control manifolds UGP1 G1 range

Selecting and fitting a pneumatic control on your actuator has never been so simple with the UniteQ modular control manifold. This innovative manifold has nothing but benefits for you. With this simple application, you will save time and cut costs in your production environment. We have listed the benefits for you so you can judge for yourself whether it makes sense to use the this product.

General

suitable for double (DA) and single (SA) acting actuators

operating the modulating, open and/or close function

available in fail safe close, open or lock-up function

design available with SIL and/or PED validation

suitable for ATEX implementation

Your benefits

compact and recognizable design

reduced components (piping and couplings) and assembly hours in workshop

executable with solenoid valve at your requirement

improved weight and space specification of your actuator

reduced number of potential leaking points, resulting in energy saving and less down time for minor repairs

produced in an energy neutral environment

Setup

modular design with aluminium anodized housing

standard booster and lock-up connection are prepared

standard measurement connections prepared

standard executed with Norgren solenoid valve 24VDC

optional you can execute with a solenoid valve at your requirement

on request available with a flow up to 30.000l/min (G1½ and G2)

Functions

Modulating (MO) / open/close (O/C ) / Lock-up (LU)

Fail safe - Close (FSC) - Open (FSO) - Lock-up (FSH)

Performance

Flow up to 8.000 l/min

UGP100057

Pneumatic manifold G1-1oo3-MO 2xNC 1xNO, 1oo3 configuration and suitable for EN1295-10 (TRD421)...

UGP100060

Pneumatic manifold G1-1oo3-MO 1x NC 2xNO, 1oo3 configuration and suitable for EN1295-10 (TRD421)...

UGP100062

Pneumatic manifold G1-MO 1x NC, modulating or quick open/close function for actuator with...

UGP100063

Pneumatic manifold G1-MO 2xNC-O/C 1xNC, modulating and quick open/close function for actuator...

UGP100064

Pneumatic manifold G1-1oo3-MO 3xNC, 1oo3 configuration and suitable for EN1295-10 (TRD421)...

UGP100065

Pneumatic manifold G1-MO 1xNC-O/C 1xNC, modulating and quick open/close function for double...

UGP100066

Pneumatic manifold G1-1oo3-MO 3xNC-O/C 1xNC, 1oo3 configuration wit quick open/close function...

UGP100074

Pneumatic manifold G1-1oo3-MO 2xNC 1xNO-O/C 1xNC, 1oo3 configuration with quick open/close...

UGP100083

Pneumatic manifold G1-MO 1xNC-O/C 1xNC, modulating with quick open/close function for double...

UGP100086

Pneumatic manifold G1-MO 1xNO-O/C 1xNO-LU 1xNC, modulating with quick open/close function for...

UGP100100

Pneumatic manifold G1-O/C 1xNC-LU 1xNC, open/close with stay put function for double acting...

UGP100053

Booster Relay with integrated quick open or close function.

Technical features

Suitable for...

UGP100000

Pneumatic manifolds

Your benifits

• Compact design with simple...

UGP100114

Pneumatic manifold G1-1x NC lock-up, modulating or quick open/close function for actuator with...
